Products

DIN-rail Temperature Transmitters

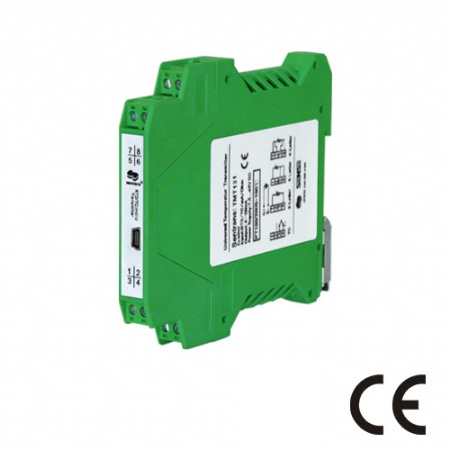

TMT131
Details Advisory
Updated(2012-5-3)  Views(2648)

Specifications:
1)Galvanic isolation 2000VAC
2)DIN Rail Temperature controller for converting various input signals into a scalable 4 to 20mA analogue output signal
3)Wide voltage supply range
4)Expanded resistance input (max 2kΩ)
5)Expanded voltage input (max 2KmV)

Performance:
* 2-wire technology, 4 to 20mA analogue output
* High accuracy in total ambient temperature range
* Internal cold junction
* Customer specific measurement range setting or expanded SETUP
* Simple and user friendly software
* USB communication

Technical data:
Output:   4 to 20mA
Supply voltage: 7.5 to 45VDC
Input: RTD, TC, Ohm, mV
Influence of ambient: Negligible
Load influence: Negligible
Power supply influence: Negligible
Resolution: 0.3uA
Installation: DIN-rail
Condensation: Allowable
Explosion Intrinsically safe: no limit
