Specifications:
1)Galvanic isolation 2000VAC
2)Operation: HART-protocol

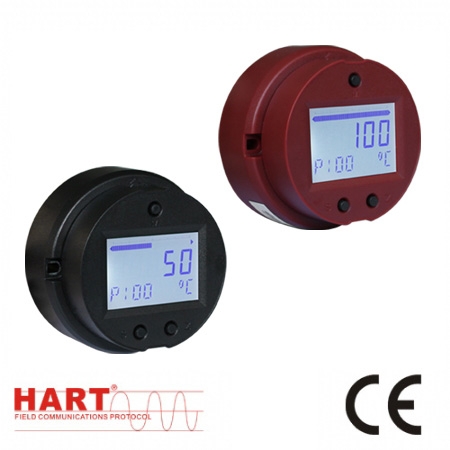

3)OEM Smart Temperature transmitter for Resistance thermometers(RTD), thermocouples(TC), resistance and voltage transmitters, with continuously rotatable backlight LCD display
4)Wide voltage supply range
5)Expanded resistance input (max 2kΩ;)
6)Expanded voltage input (max 2KmV)
Performance:
* Universal settings with HART-protocol for various input signals
* 2 wire technology, 4 to 20mA analogue output
* High accuracy in total ambient temperature range
* Galvanic isolation 2000VAC
* An internal temperature sensor of active temperature compensation
* Wide voltage supply range
* Customer specific measurement range settings
* Simple and user friendly software
* Multiparametric backlight rotatable LCD display
| Technical data: | |
| Output: | 4 to 20mA |
| Supply voltage: | 10.5 to 45VDC |
| Input: | RTD, TC, Ohm, mV |
| Influence of ambient: | Negligible |
| Load influence: | Negligible |
| Power supply influence: | Negligible |
| Resolution: | 0.3uA |
| Installation: | Field Mounted |
| Operation: | PC-programmable |
