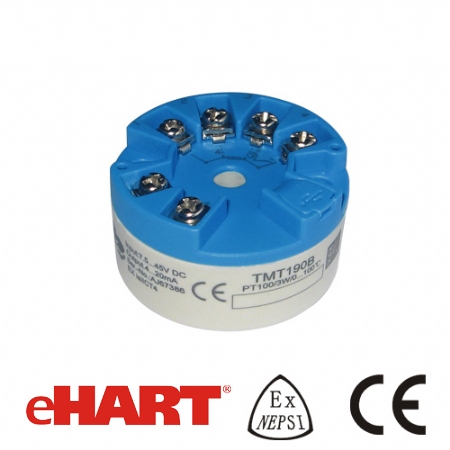

TMT190B
Specifications:
1)PC programmable temperature transmitter for converting various input signals into a scalable 4 to 20mA analogue output signal
2)Wide voltage supply range
3)Expanded resistance input (max 2kΩ;)
4)Expanded voltage input (max 2KmV)
Performance:
* e-HART communication
* Internal cold junction
* Fault signal on sensor break or short circuit
* 2-wire technology, 4 to 20mA analogue output
* High accuracy in total ambient temperature range
* Customer specific measurement range setting or expanded SETUP
| Technical data: | |
| Output: | 4 to 20mA |
| Supply voltage: | 7.5 to 45VDC |
| Input: | RTD, TC, Ohm, mV |
| Influence of ambient: | Negligible |
| Load influence: | Negligible |
| Power supply influence: | Negligible |
| Resolution: | 0.3uA |
| Installation: | sensor head Form B |
| Operation: | PC-programmable |
