• Output: 4 to 20mA
• Supply voltage: 9-45VDC
• Operation: PC programmable via USB configuration
• Operating temperature range: -40-85 ℃
• with display: -20-70℃
• Humidity (non-condensing): 0 to 95%RH
• Dimension: Φ61mm

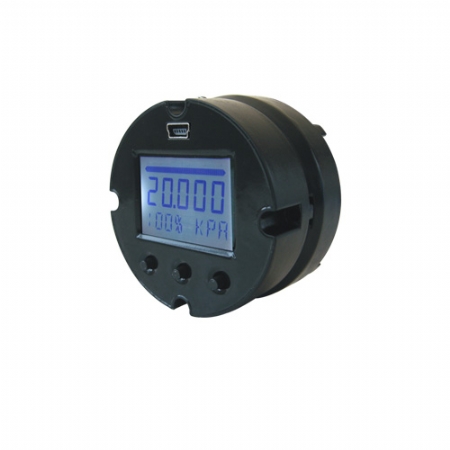

SENSE series SE61D OEM digital board is an intelligent 2-wire system for pressure and other measurement applications. The board is suited for Multi-sensors, settable using a PC. SE61D can be freely programmed via two or three push-buttons. The backlight display(optional) can continuously rotate 330º.
Performance
* Wide voltage supply range:9-45VDC
* Self stability and filter setup:Improve transmitter stability
* Freely linearity and temperature compensation:Min. 2 points, max. 11 points
* Self-learning function:Acceptability 1.5mV-4.8V signal input
* Popular sensors acceptable:E.g. Pressure, load cells magnetic float ball, strain gauge etc.
* Backup and restore data:Convenient for using on the locale
* Excellent EMC performance:Suitable for harsh conditions
Application
The SE61D may be used for various measure sensor:
-pressure sensors
-differential sensors (3051/1151 Metal Capacitive with preamplifier)
-load cells
-magnetic field sensors
-strain gauge
- resistor of 2/3/4wires
Technical data
* Output: 4 to 20mA
* Supply voltage: 9-45VDC
* Operation: PC programmable or PDA
* Operating temperature range: -40-85 ℃
* with display: -20-70℃
* Humidity (non-condensing): 0 to 95%RH
* Dimension: Φ61mm
