Specifications:
•Output: 4 to 20mA
•Supply voltage: 9-45VDC
•Operation: PC programmable or PDA
•Operating temperature range: -40-85℃
•Humidity(non-condensing):0 to 95%RH
•Dimension: 21.5mm×40mm

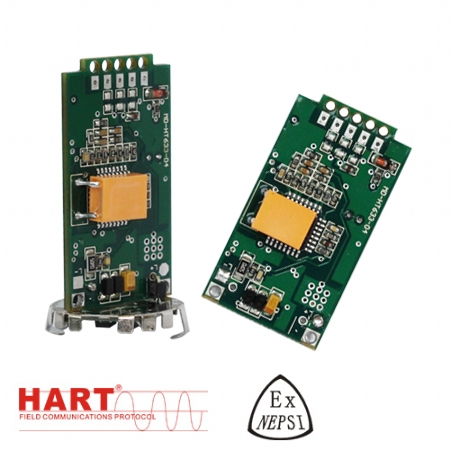

SENSE series SE633 board with HART-protocol is suitable for Multi-sensors. SE633 can accept signal of 3051/1151 Metal capacitive with preamplifier. SE 633 is the Intrinsic Safe version for use in Ex-applications.
Performance
* Minimized structure style:21.5mm×40mm
* Wide voltage supply range:9-45VDC
* Self stability and filter setup:Improve transmitter stability
* Freely linearity and temperature compensation:Min. 2 points, max. 11 points
* Self-learning function:Acceptability 1.5mV-4.8V signal input
* Popular sensors acceptable:E.g. Pressure, load cells magnetic float ball, strain gauge etc.
* Backup and restore data:Convenient for using on the locale
* Excellent EMC performance:Suitable for harsh conditions
Application
The SE633 may be used for various measure sensor:
-pressure sensors
-differential sensors (3051/1151 Metal Capacitive with preamplifier)
-load cells
-magnetic field sensors
-strain gauge
- resistor of 2/3/4wires
Technical data
* Output: 4 to 20mA
* Supply voltage: 9-45VDC
* Operation: PC programmable or PDA
* Operating temperature range: -40-85℃
* Humidity (non-condensing): 0 to 95%RH
* Dimensions: 21.5mm×40mm
