Specifications:
•Input: all of toxic and electrochemical gas sensors and pressure sensor, load cell, strain gauge, magnetic field sensor, differential pressure sensor, resistor of 2/3/4 wires etc
•Backlight LCD display
•Output: 4...20mA

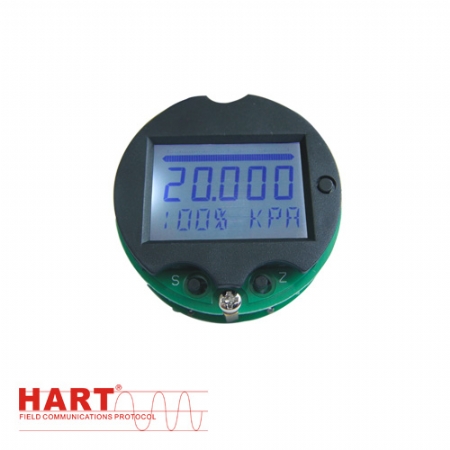

SE52H is suitable for more than 20 different electrochemical gas sensors & pressure sensors, strain gauges, differential pressure sensors, level and etc.
SE52H converts input signals into 4 to 20 mA analogue output signal.
Performance
* Multifunction solution for gas, pressure, level, load cell, strain gauge and magnetic field sensor and etc
* Freely linearity and temperature compensation
* Excellent stability
* Convenient installation and operation
* High accuracy, fast response
* Excellent EMC performance
Technical data
* Input: all of toxic and electrochemical gas sensors and pressure sensor, load cell, strain gauge, magnetic field sensor, differential pressure sensor, resistor of 2/3/4 wires etc.
* Output: 4-20mA
* Supply voltage: 9-45VDC
* Operation: PC programmable or PDA
* Operating temperature range: -40-85℃
* Humidity (non-condensing): 0 to 95%RH
* Dimension: Φ51mm
